The Boeing 787-9 Dreamliner: A Step Toward Sustainable Aviation

Sustainability at Its Core

The Boeing 787-9 was built with sustainability in mind. First of all, it was lightweight because it was made up of 50% advanced composite materials. This reduced the overall weight and helped to improve the fuel efficiency of the aircraft. Compared to earlier wide-body aircraft, such as the Boeing 777-300, the Dreamliner uses 20% less fuel and emits 20% fewer carbon emissions per passenger.

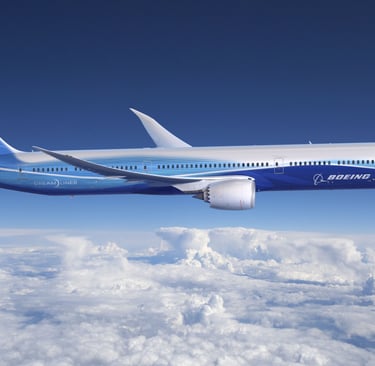

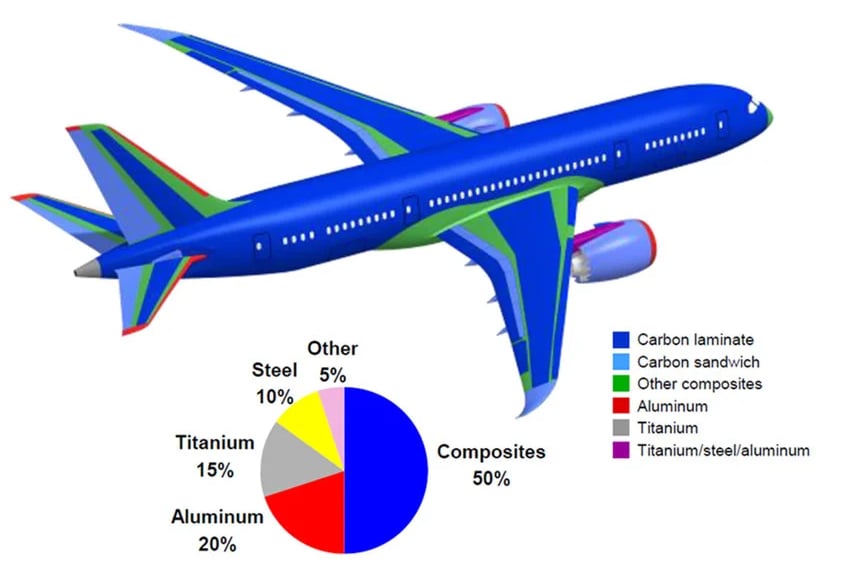

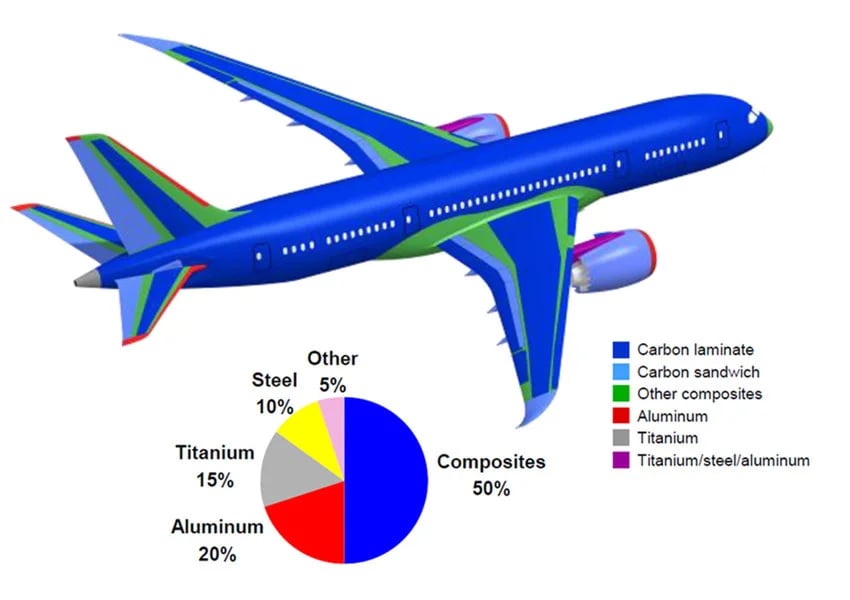

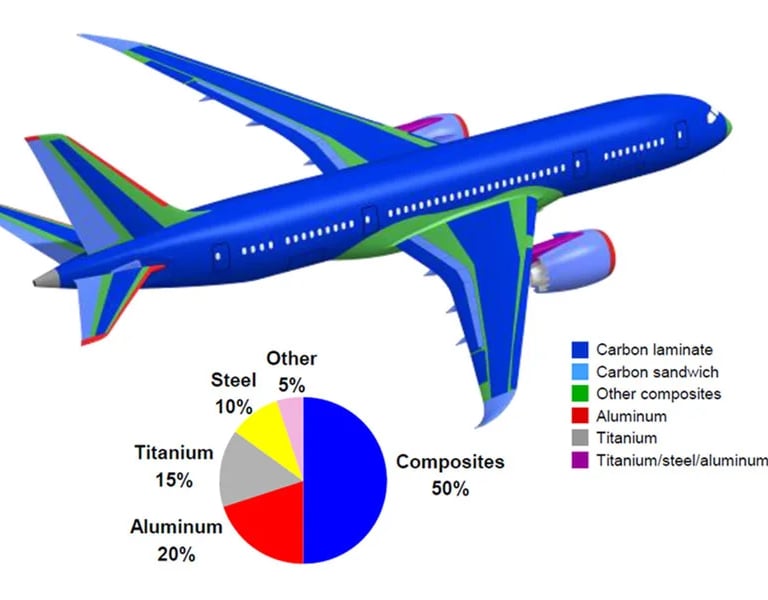

In the image below, we see multiple parts of the aircraft including the fuselage, body, wings, tail, etc, all contain composites.

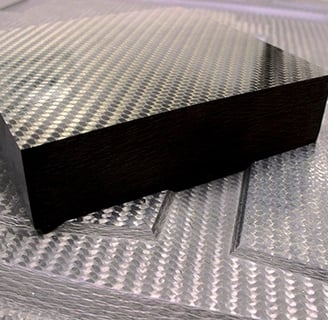

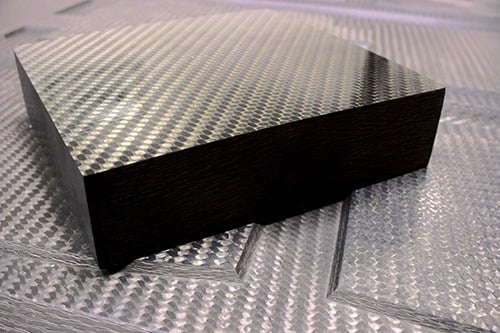

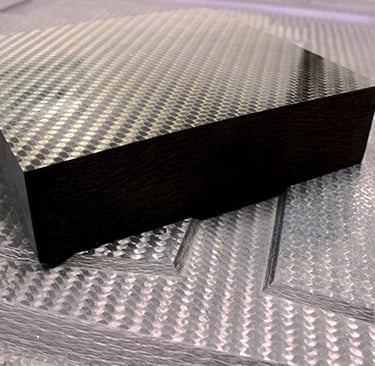

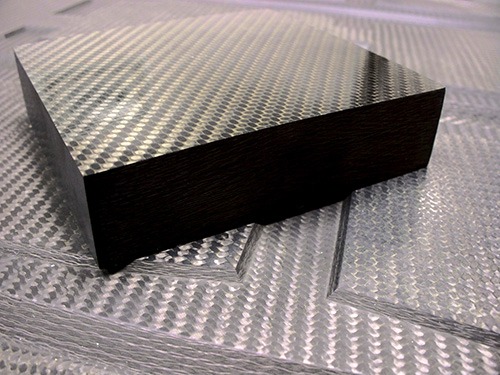

Composite materials are materials made by combining two or more different materials. Typically, we use strong fibers like carbon fiber or glass fiber embedded in a resin matrix, creating a lightweight yet highly durable structure.

Innovations in Fuel Efficiency

The Dreamliner is also known for its fuel efficiency. Due to its aerodynamic design and advanced propulsion, it can cut fuel costs and ultimately cut emissions. Its sleek wings, equipped with raked wingtips, reduce drag and enhance flight performance. Additionally, the engines, either Rolls-Royce Trent 1000 or General Electric GEnx, are among the most fuel-efficient in their category. Therefore, the Dreamliner can fly longer routes while consuming less fuel, contributing to sustainability in aerospace.

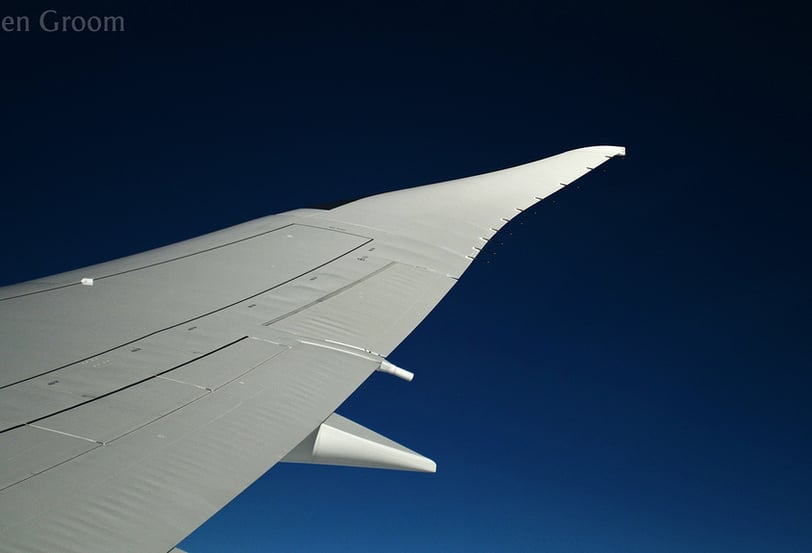

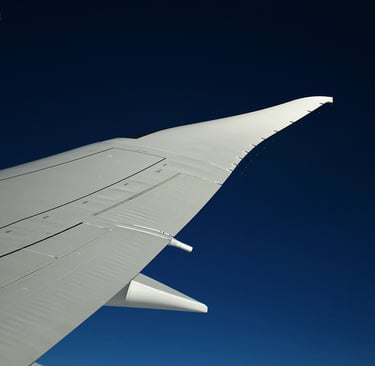

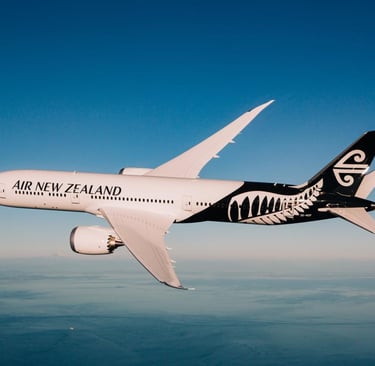

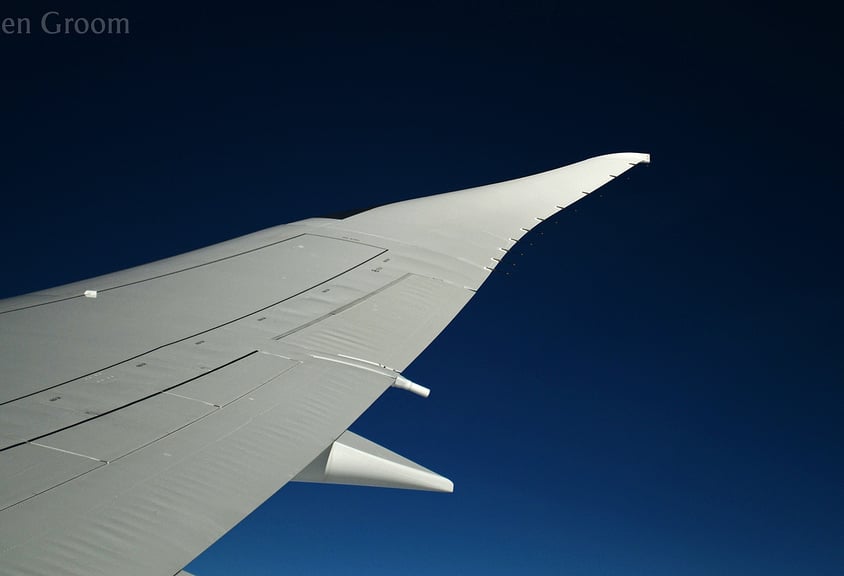

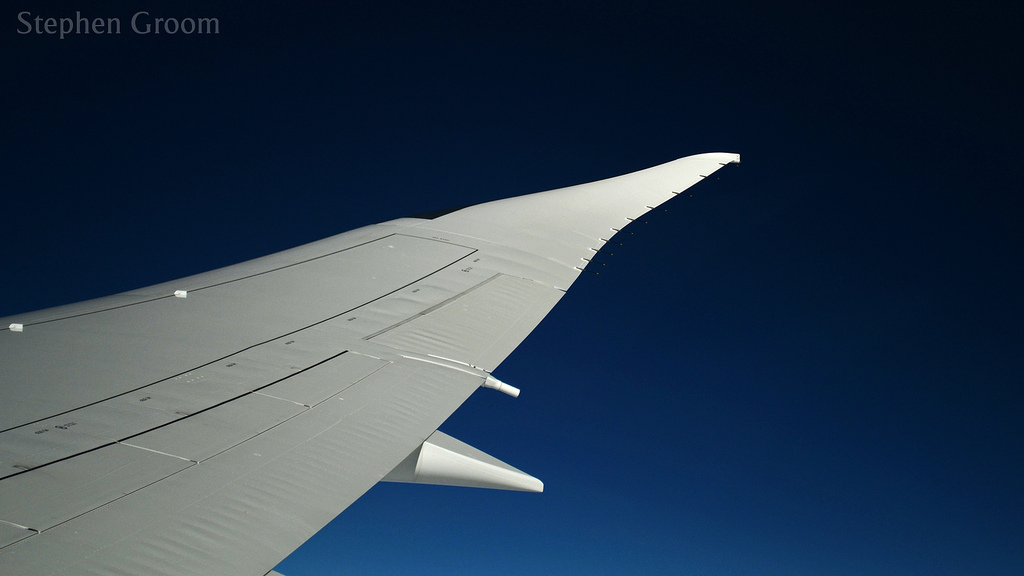

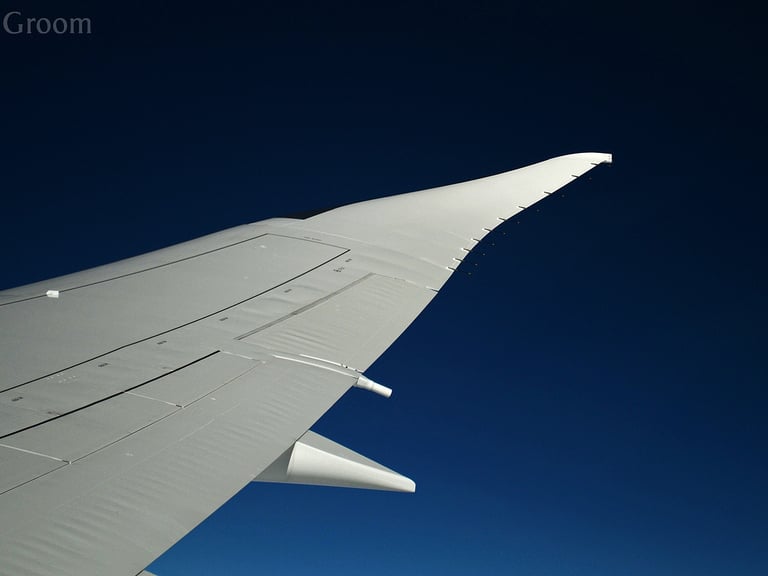

The image below represents the view from a passenger window, showing how the raked wingtip works. Raked wingtips improve the aircraft's aerodynamic efficiency by extending the wing length and increasing the aspect ratio.

Raked wingtips can improve fuel efficiency by 3-5%. They can also reduce the length of runway required for takeoff and improve the climb performance. Additionally, they can reduce wingtip vortices, which are swirling air vortices created when fast-moving air meets slow-moving air at the wing's tip. Overall, the Dreamliner experiences a smoother and more efficient ride.

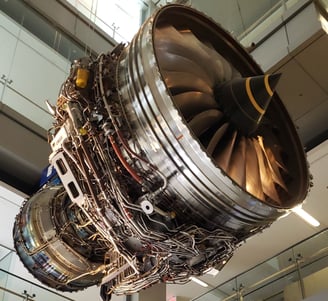

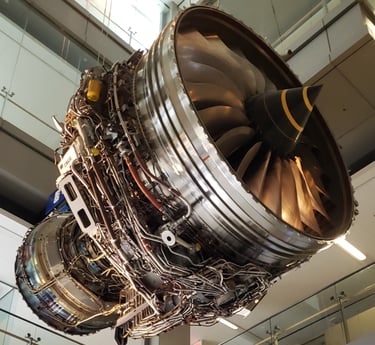

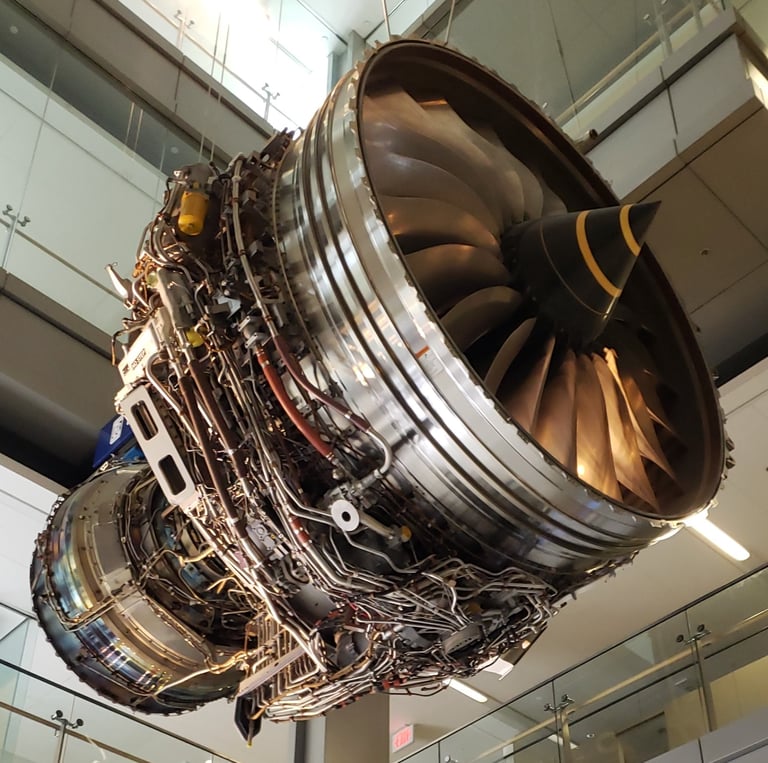

The Rolls-Royce Trent 1000 turbofan engine powers the Boeing 787 Dreamliner. It has a high bypass ratio, a heated Engine Section Stator (ESS) system, and a three-shaft architecture. It is known for its fuel efficiency, quietness, and reliability. It can generate over 50,000 horsepower at maximum take-off, which is equivalent to Formula 1 race cars.

3-5%

50,000

Horsepower (take-off max)

Fuel burn saved

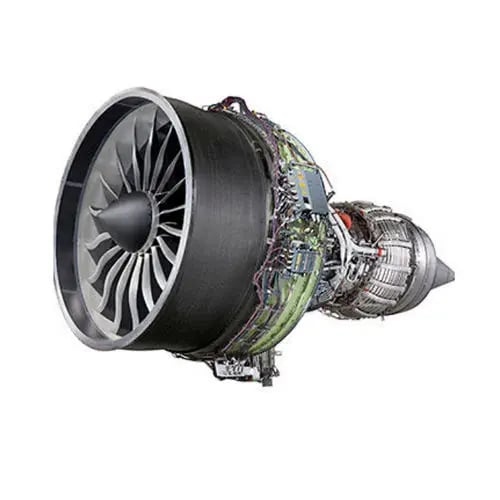

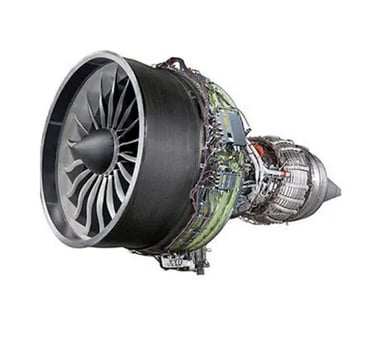

The General Electric GEnx is a high-bypass turbofan jet designed to power the Dreamliner. It is a highly efficient, advanced engine with features like a carbon-fiber composite fan case. It is known for being the fastest-selling widebody jet engine in GE's history. It works on not only the 787 but also the 747-8. It features a counter-rotating fan system and advanced combustor technology for reduced emissions.

70k

2,500

Engines sold

Ib-feet of torque

Reduced Noise Pollution

Boeing is focused not only on pollution but also on noise pollution. The Dreamliner uses advanced noise-reducing technologies, including serrated engine nacelles, which help to minimize sound during takeoff and landing. Communities near airports benefit from this, as society can continue coexisting with aviation.

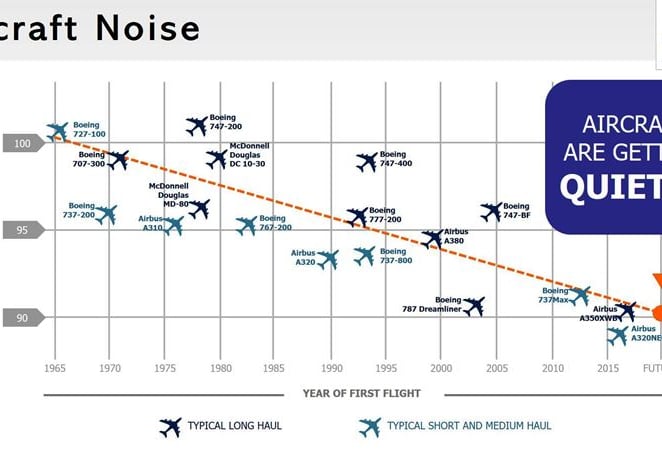

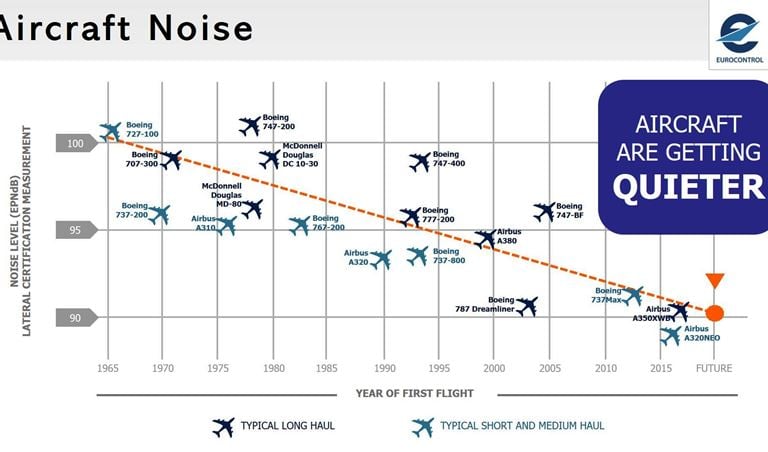

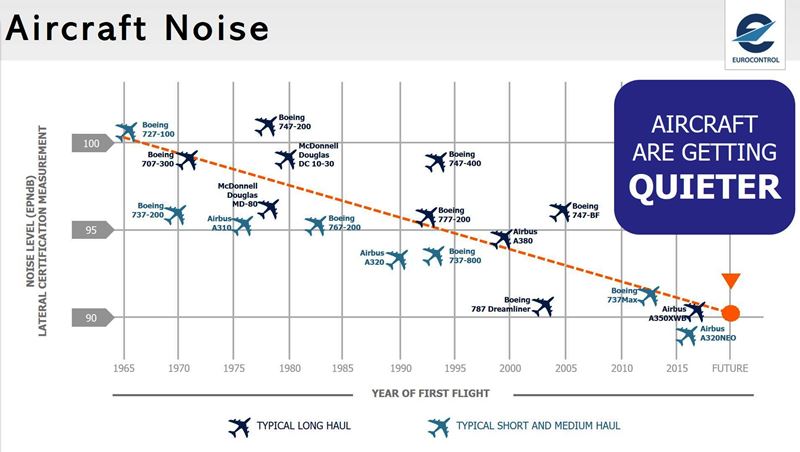

The image below represents the aircraft noise over the years from 1965 to present. The Boeing 787 sits at the bottom of the graph in between the years 2000 and 2005. It represents a large drop in noise level compared to its predecessor, the Airbus A380.

Passenger Experience and Environmental Impact

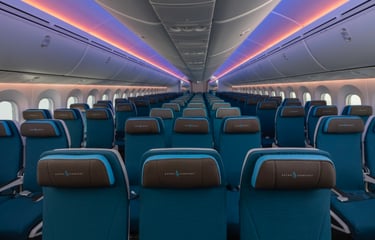

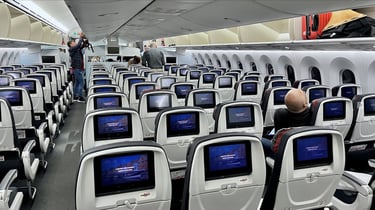

Sustainability in aviation also focuses on creating an efficient and enjoyable passenger experience. The Dreamliner's improved cabin pressurization, larger windows, and higher humidity levels ensure passenger comfort while reducing the environmental cost of wasted resources.

Pressurization in Cabin

The 787's cabin pressure is equivalent to an altitude of 6,000 ft (1,829 m), which is 20% lower than similar aircraft. This higher pressure level is possible because the 787's fuselage is made of carbon fiber reinforced plastic, which is stronger and lighter than aluminum.

The 787's cabin has 15% air humidity, compared to the typical 4%. This increased humidity, along with the increased oxygen, can help reduce the effects of jet lag and dry eyes.

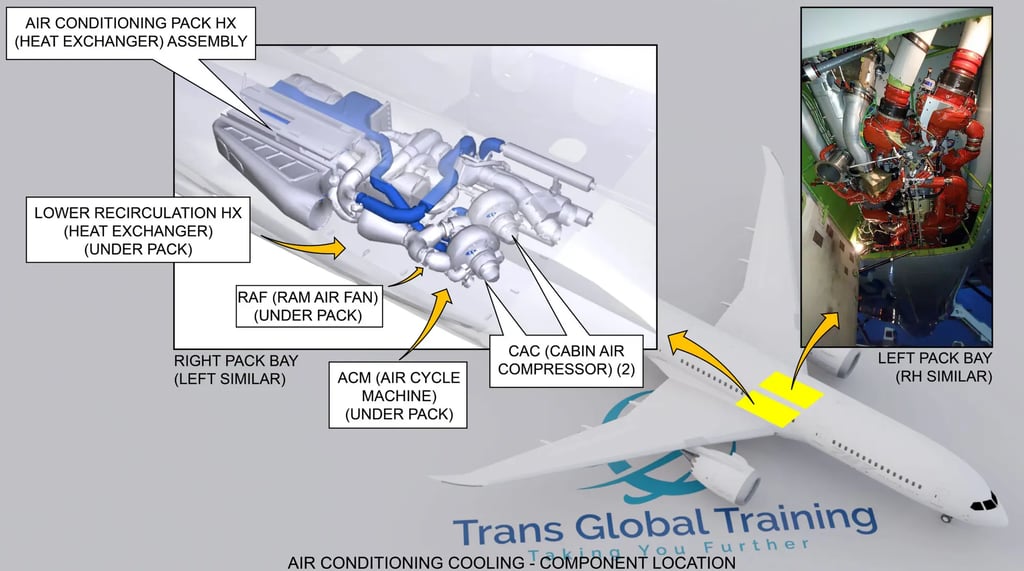

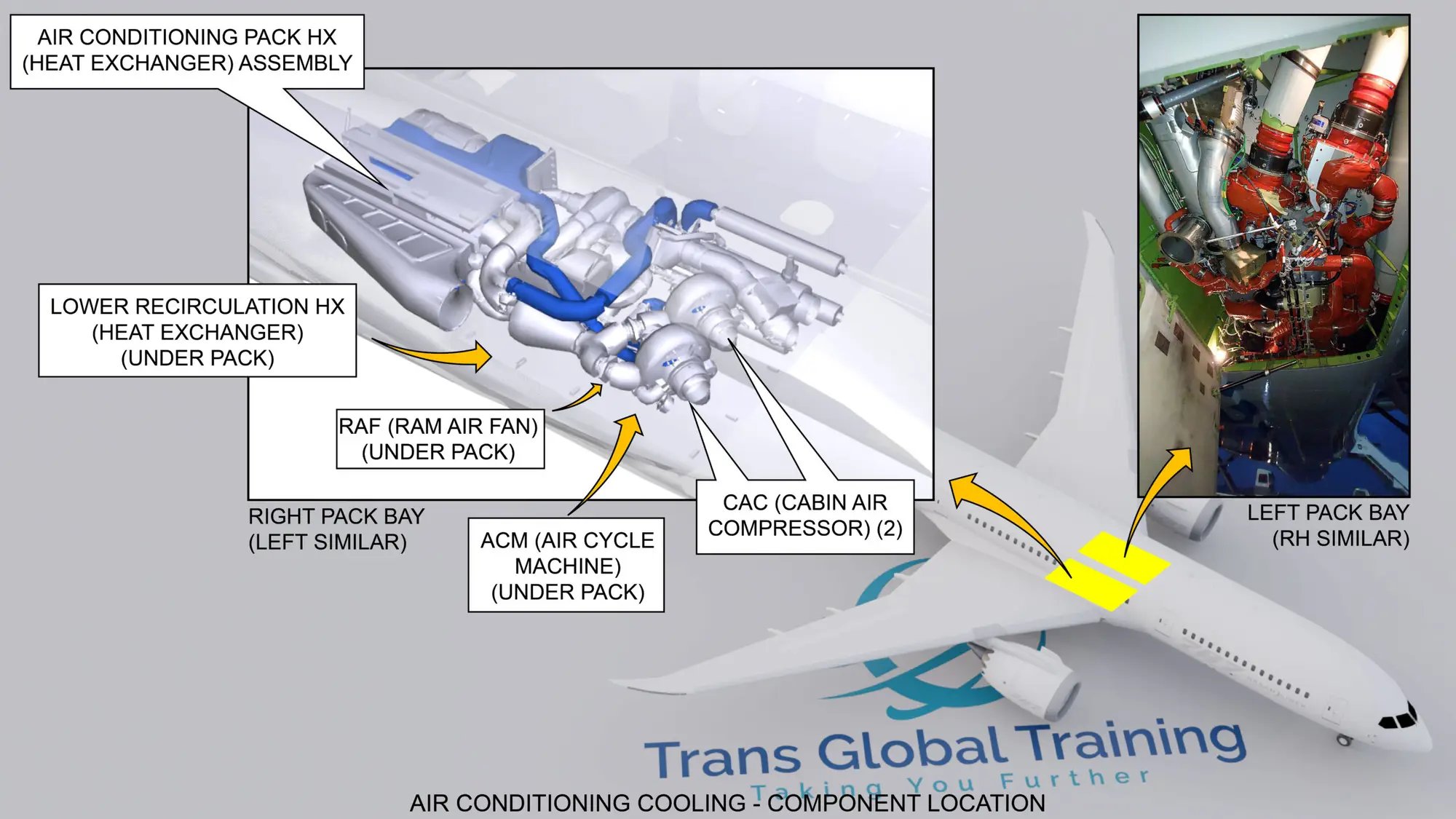

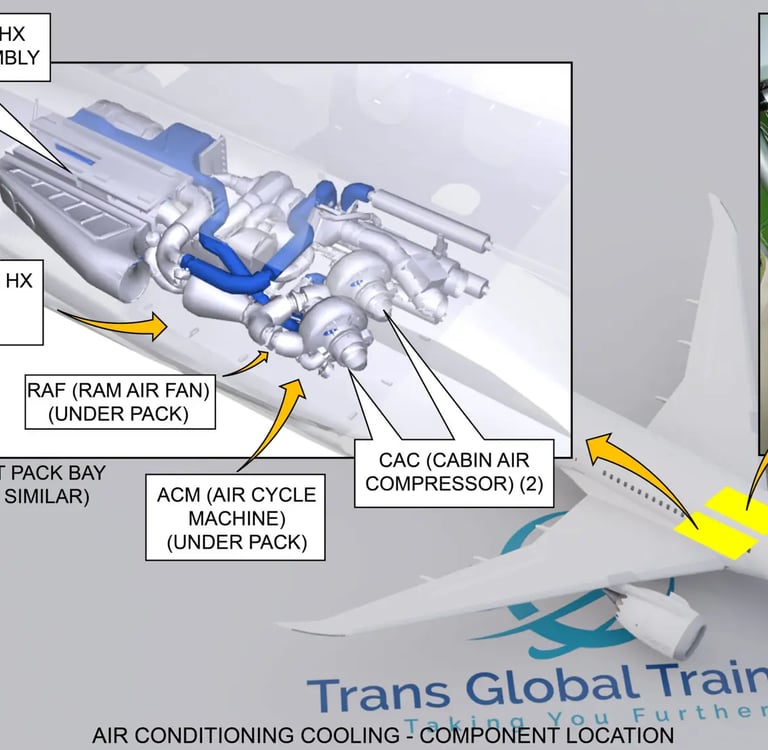

The 787's air conditioning system is fully electric, using electric motors to power compressors that prepare the cabin air. The air comes from the outside atmosphere, rather than being drawn from the jet engines.

The 787's cabin pressure reduces the risk of altitude sickness, which can be caused by the decreased partial pressure of oxygen in aircraft cabins. According to Boeing, only 5% of passengers on the 787 experience respiratory distress, compared to 25% on conventional aircraft.

Larger Windows

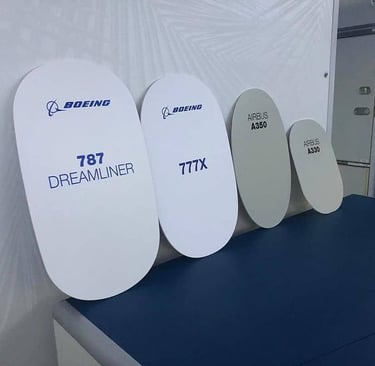

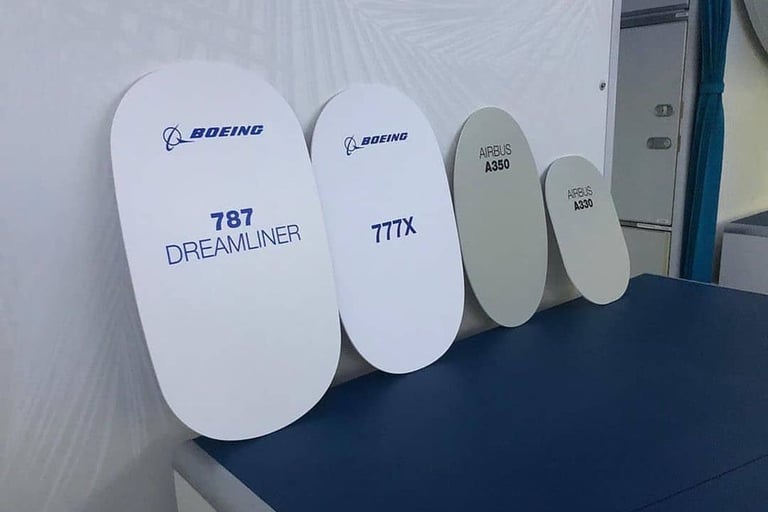

The windows are about 27 x 47 cm, roughly the size of a piece of hand luggage. They are about 1.3 times larger than other aircraft windows. The windows have electro-chromatic shades that can be adjusted with the touch of a button. The shades can be set to five levels of transparency, from completely clear to pitch black.

The Boeing 787-9 Dreamliner exemplifies how innovative engineering can drive the aviation industry toward a more sustainable future. Its advanced composite materials, aerodynamic design, and fuel-efficient engines have set new standards for environmental responsibility in air travel. By reducing fuel consumption and emissions, the Dreamliner minimizes its ecological footprint and paves the way for future advancements in sustainable aviation technology. As the industry evolves, the 787-9 is a benchmark for balancing performance, passenger comfort, and environmental stewardship.
